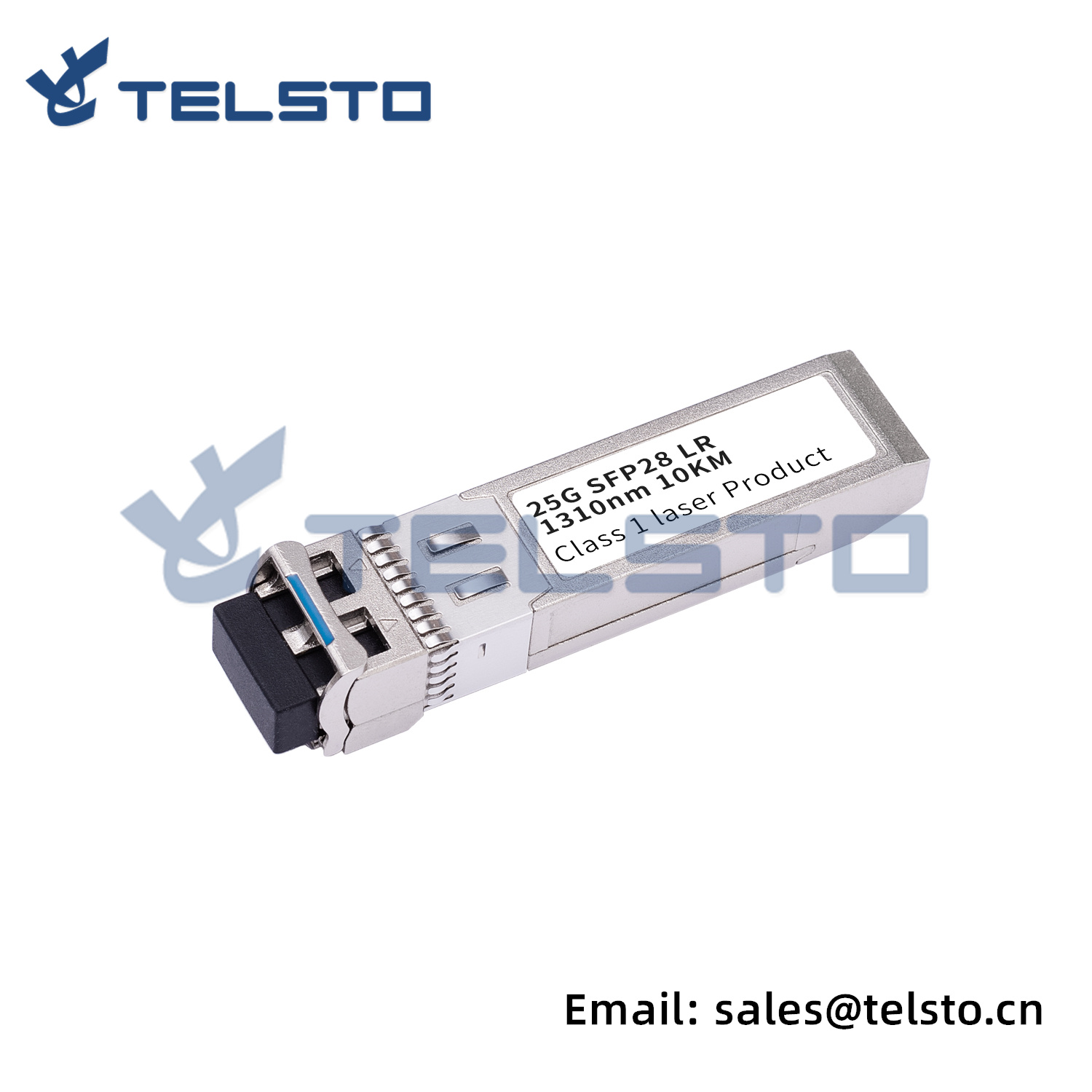

25G SFP28 LR 1310NM 10KM Duplex LC SMF
25G SFP28 LR 1310NM 10KM Duplex LC SMF
SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Max. Power Consumption 1.2W
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
Support Real-time Configuration
Hot Pluggable SFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety and RoHS Compliant
Specifications
|
Data Rate |
25GB |
|
Model |
LR |
|
Form Factor |
SFP28 |
|
Wavelength |
1310NM |
|
Reach |
10KM |
|
Connnector |
Duplex LC |
|
Media |
SMF |
|
TX |
DFB |
|
RX |
PIN |
|
Temperature |
C Temp |
