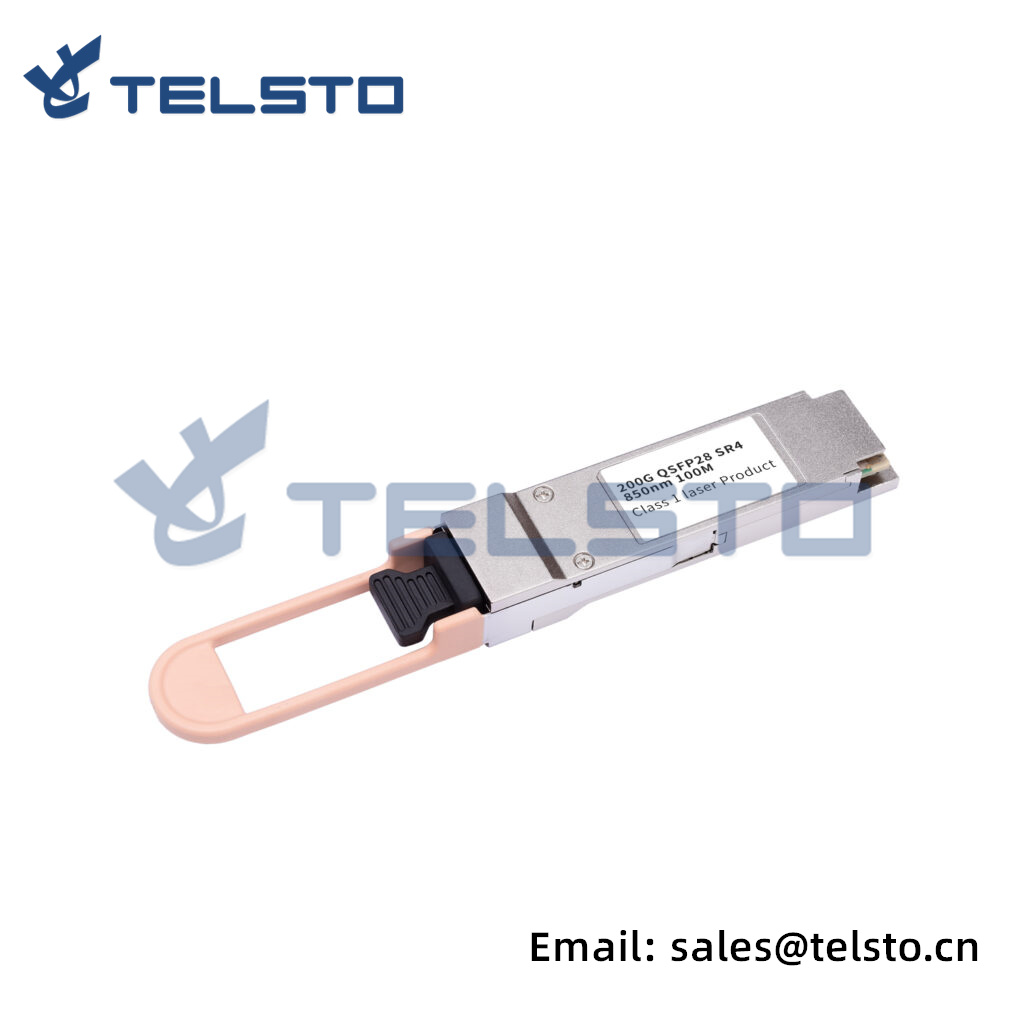

200G QSFP56 SR4 850NM 100M MPO MMF
200G QSFP56 SR4 850NM 100M MPO MMF
QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters. The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
Built-in Inphi Chip, Max. Power Consumption 5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP56 Form Factor
I2C management interface Based on MSA SFF-8636
4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
High-speed Electrical Compliant to IEEE 802.3bs
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety
Specifications
|
Data Rate |
200G |
|
Form Factor |
QSFP56 |
|
Model |
SR |
|
Wavelength |
850NM |
|
Reach |
100M |
|
Connector |
MPO |
|
Media |
MMF |
|
TX |
VCSEL |
|
RX |
PIN |
|
Temperature |
C Temp |
