2 in-2 Out Fiber Splice Closure

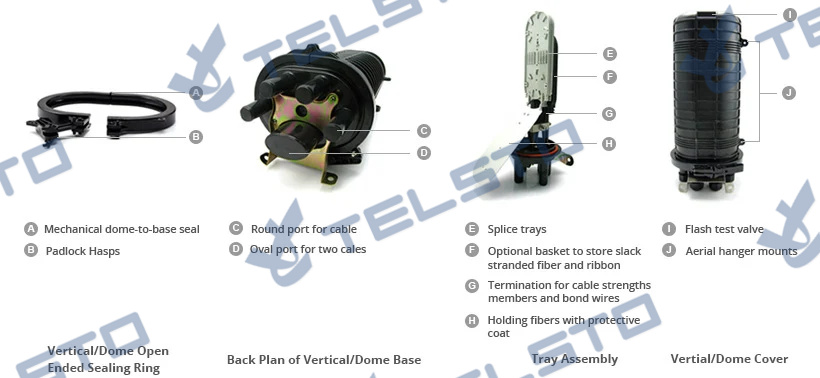

Dome type fiber optic splice closure are made of excellent engineering plastics. Telsto supply different ports types, fittings and different fiber optic core numbers for horizontal fiber optic splice closures.
Telsto's Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Feature
1.Suitable for ordinary fiber and ribbon fiber.
2.Fully kitted with all parts for convenient operation.
3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture, vibration and extreme temperatures.
Application
1. Be suitable for Aerial, Duct and Direct Buried application.
2.CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.
Specification
| Cable ports | 4 Entires(2 on each side) |
| Number of fiber fusion | 12 (bunchy) |
| Splice tray cores | 24 (bunchy) |
| Max capacity of fiber | 96 (bunchy) |
| Working temperature | -40℃~65℃ |
| Insulation resistance | >2×104MΩ |
| Opening Type | Anti-removable Screw-Type |
| Installation Type | Aerial |
| Sealing structure | Sticky cincture |
